4G Dashcam
ZW3
The ZW3 is a professional 3-channel dash camera system (1080P front + 720P interior + 720P rear) designed for comprehensive vehicle security and fleet management. Powered by Android 8.1 with 4G LTE connectivity, it enables real-time GPS tracking, cloud monitoring, and seamless data transmission via WIFI hotspot.
The ZW3 is a professional 3-channel dash camera system (1080P front + 720P interior + 720P rear) designed for comprehensive vehicle security and fleet management. Powered by Android 8.1 with 4G LTE connectivity, it enables real-time GPS tracking, cloud monitoring, and seamless data transmission via Wi-Fi hotspot.
Product Parameter | ||
CPU | ||
Storage | Flash ROM | 32GB |
| RAM | 2GB |
GPS | Support GPS&BD Dual mode positioning | |
Operating system | Android 8.1 | |

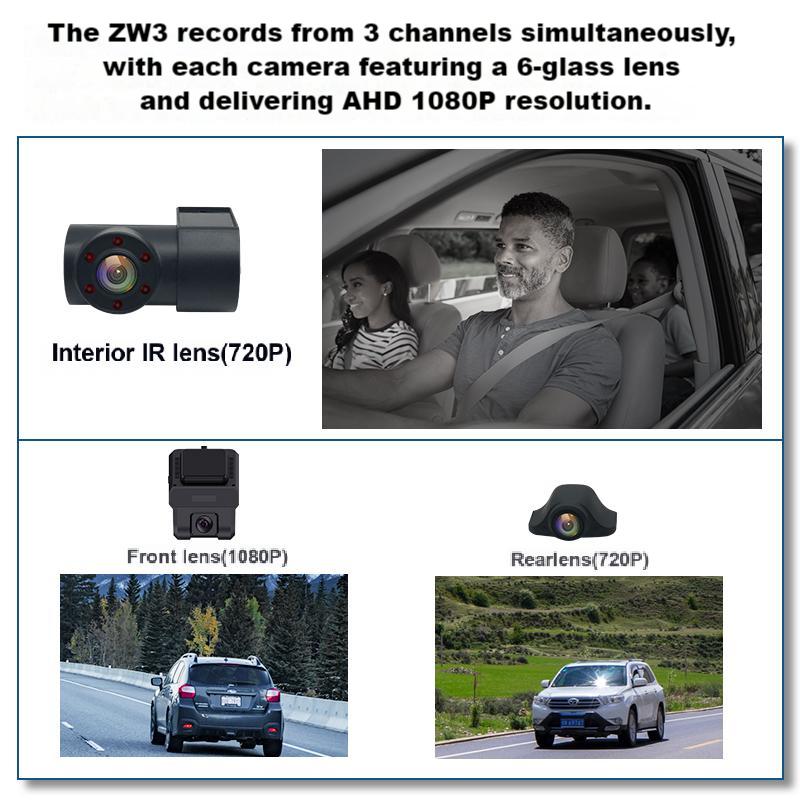

3 CHS AHD cameras | Front (AHD 1080P), Back (AHD 720P), Inside IR Cam (AHD 720P ) | |
Remote Monitor | Support Moblie APP
Computer video remotely monitor & live-view (for commercial vehicles version) | |
JTT808/JTT1078 procotol | Support | |
Communication frequency band | GSM:B5/B3/B8;
WCDMA:B1/B5/B8;
TDD-LTE:B38(2600)/B39(1900)/B40(2300)/B41(2500);
FDD-LTE:B1(2100)/B3(1800)/B5(850)/B8(900) | |
WIFI | 802.11ac/b/g/n 2.4G&5G; Support WiFi hotspot | |
SOS | Support one-key alarm | |
Video format | TS | |
Storage compression | H.264 | |
Video resolution | Front camera :1920*1080 15fps; Back / Inside cam: 1280*720 15fps | |
G-Sensor | 6-axis G-sensor sensor, support loop recording | |
24H Parking monitor | 6-axis G-sensor sensor, support parking monitor | |
USB | Type-C USB | |
External Storage | Micro SD card, maximum 256GB (not include) | |
Microphone | Built-in high-sensitivity microphone | |
Speaker | Built-in high-fidelity mono 8Ω 2W speaker | |
Key button | Reset and power button | |
Serial communication | Support 1CH RS232 | |
Reset | Support | |
Power supply | Fuse box to take power, support 9-16V voltage（for 17~36V, a dedicated voltage converter is required） | |
working environment | -20°C~+70°C | |
storage temperature | -30°C~+80°C | |
| ||
