How to install a rear - view camera with a CarPlay monitor?

Hey there, car enthusiasts! If you're like me, you're always on the lookout for ways to upgrade your ride and make your driving experience safer and more enjoyable. One of the best upgrades you can make is installing a rear - view camera with a CarPlay monitor. Not only does it give you a clear view of what's behind you when you're backing up, but it also integrates with your iPhone through CarPlay, giving you access to all your favorite apps and features right on your dashboard. And guess what? I'm a CarPlay monitor supplier, so I've got all the tips and tricks to help you through this installation process.

Why Install a Rear - View Camera with a CarPlay Monitor?

First off, let's talk about why you should even bother with this upgrade. Safety is the number one reason. Backing up can be a tricky maneuver, especially in tight spaces or when there are small objects or kids around. A rear - view camera gives you a wide - angle view of what's behind your car, eliminating blind spots and reducing the risk of accidents.

Secondly, having a CarPlay monitor means you can connect your iPhone to your car's dashboard. You can use Apple Maps for navigation, stream music from Spotify or Apple Music, make hands - free calls, and even send and receive text messages using Siri. It's like having a mini - iPhone on your dashboard, but designed specifically for your car.

What You'll Need

Before you start the installation, you'll need to gather a few tools and materials. Here's a list:

1. A rear - view camera kit. Make sure it's compatible with your CarPlay monitor.

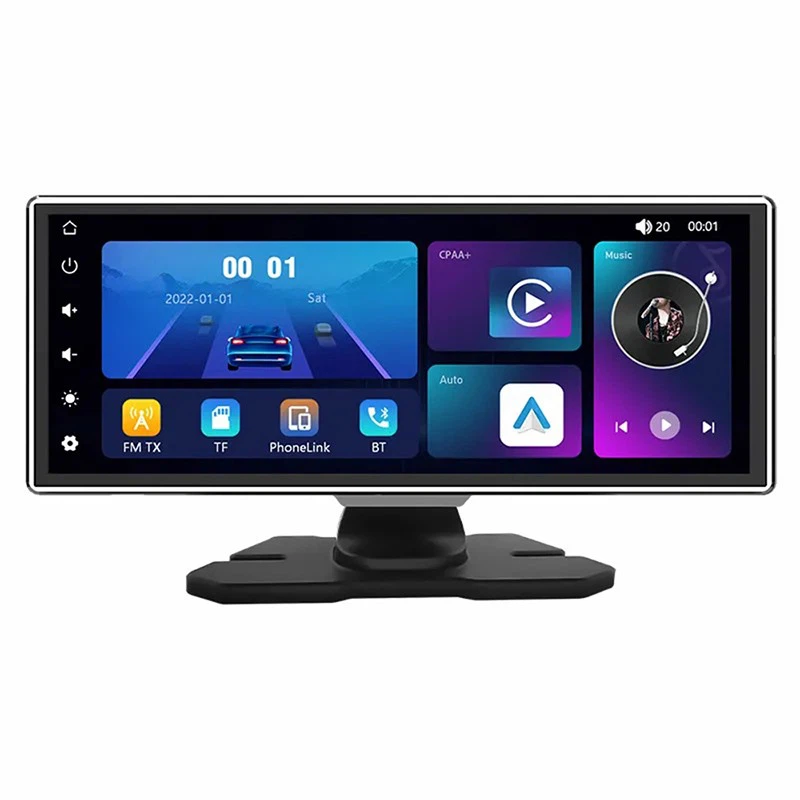

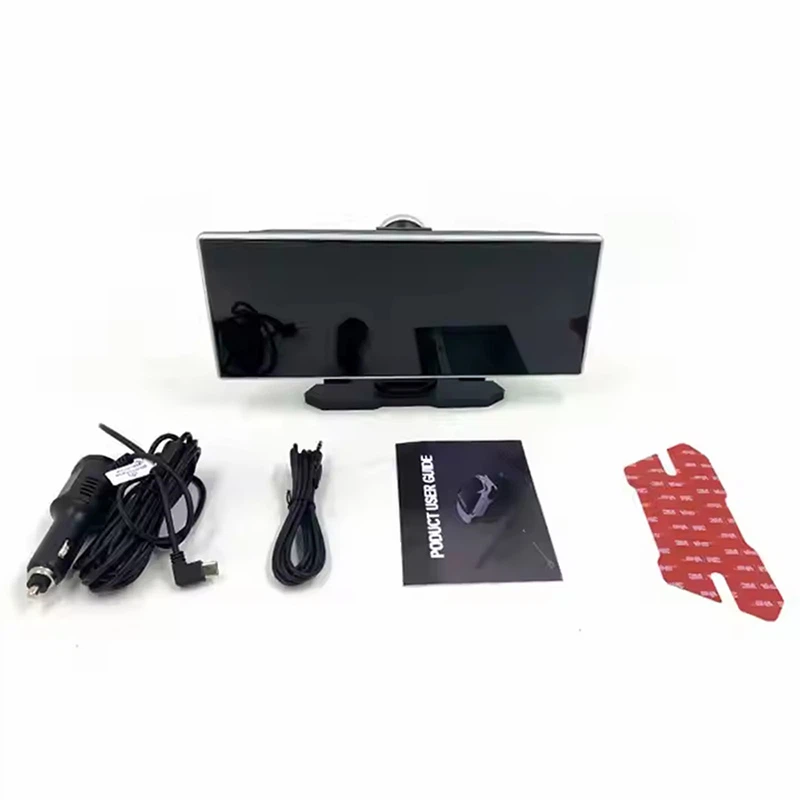

2. A CarPlay monitor. You can check out our Dashboard Wireless Smart Screen with Carplay. It's a great option that offers seamless integration with your iPhone.
3. A power drill and drill bits.
4. Screwdrivers (both flat - head and Phillips).
5. Wire strippers and crimpers.
6. Electrical tape.
7. Zip ties to organize the wires.
8. A test light to check for power.

Step - by - Step Installation Guide

Step 1: Choose the Right Location for the Rear - View Camera

The first step is to decide where to mount the rear - view camera. The most common locations are on the license plate bracket or on the rear bumper. If you mount it on the license plate bracket, it will give you a good view of what's directly behind your car. If you mount it on the rear bumper, it might give you a wider view.

Once you've chosen the location, clean the surface where you'll be mounting the camera. Use a mild detergent and a clean cloth to remove any dirt or debris.

Step 2: Drill Holes and Mount the Camera

If you're mounting the camera on the license plate bracket, you might need to drill a couple of holes to attach it. Use a drill bit that's the right size for the screws that come with the camera. Make sure the holes are straight and evenly spaced.

If you're mounting it on the rear bumper, you might need to use double - sided tape or special adhesive brackets. Follow the manufacturer's instructions carefully.

After you've drilled the holes or prepared the mounting surface, attach the camera using the screws or brackets. Make sure it's secure and level.

Step 3: Run the Wires

Now it's time to run the wires from the rear - view camera to the CarPlay monitor. Start by removing the trim panels inside your car. You can use a flat - head screwdriver to gently pry them off. Be careful not to break them.

Run the wires along the edges of the interior, using zip ties to secure them. You can hide the wires under the carpet or along the door frames. Make sure the wires are not pinched or damaged.

Once you've run the wires to the front of the car, you'll need to connect them to the CarPlay monitor. Refer to the monitor's manual for the specific wiring instructions. You'll usually need to connect the power wire, the video wire, and the ground wire.

Step 4: Connect the CarPlay Monitor

Before you connect the monitor to your car's power supply, make sure your car is turned off. Locate the power source in your car. This could be the fuse box or the cigarette lighter socket.

Use a test light to check for power. Once you've found a suitable power source, connect the power wire from the CarPlay monitor to it. You might need to use wire strippers and crimpers to make a secure connection. Then, use electrical tape to insulate the connection.

Next, connect the video wire from the rear - view camera to the monitor. This will allow the monitor to display the image from the camera.

Step 5: Test the System

Once you've connected all the wires, it's time to test the system. Turn on your car and start the CarPlay monitor. You should see the image from the rear - view camera on the monitor. If you don't, check all the connections to make sure they're secure.

You can also test the CarPlay functionality by connecting your iPhone to the monitor. Make sure you can access all the apps and features through CarPlay.

Step 6: Reassemble the Interior

If everything is working properly, it's time to reassemble the interior of your car. Put the trim panels back in place and make sure they're securely attached.

Troubleshooting Tips

• If the image on the monitor is blurry or distorted, check the camera's lens. It might be dirty or damaged. Clean it with a soft cloth or replace the camera if necessary.
• If the CarPlay connection is not working, make sure your iPhone is updated to the latest version of iOS. You can also try disconnecting and reconnecting the iPhone to the monitor.
• If there's no power to the monitor or the camera, check the fuses in your car. You might also need to check the wiring connections to make sure they're not loose or damaged.

Conclusion

Installing a rear - view camera with a CarPlay monitor is a great way to upgrade your car and make your driving experience safer and more fun. It might seem like a daunting task at first, but if you follow these steps and use the right tools, you can do it yourself.

If you're interested in purchasing a CarPlay monitor or have any questions about the installation process, feel free to reach out to us. We're here to help you make the most of your car upgrade.
