Motorcycle Dash Cam
MT686

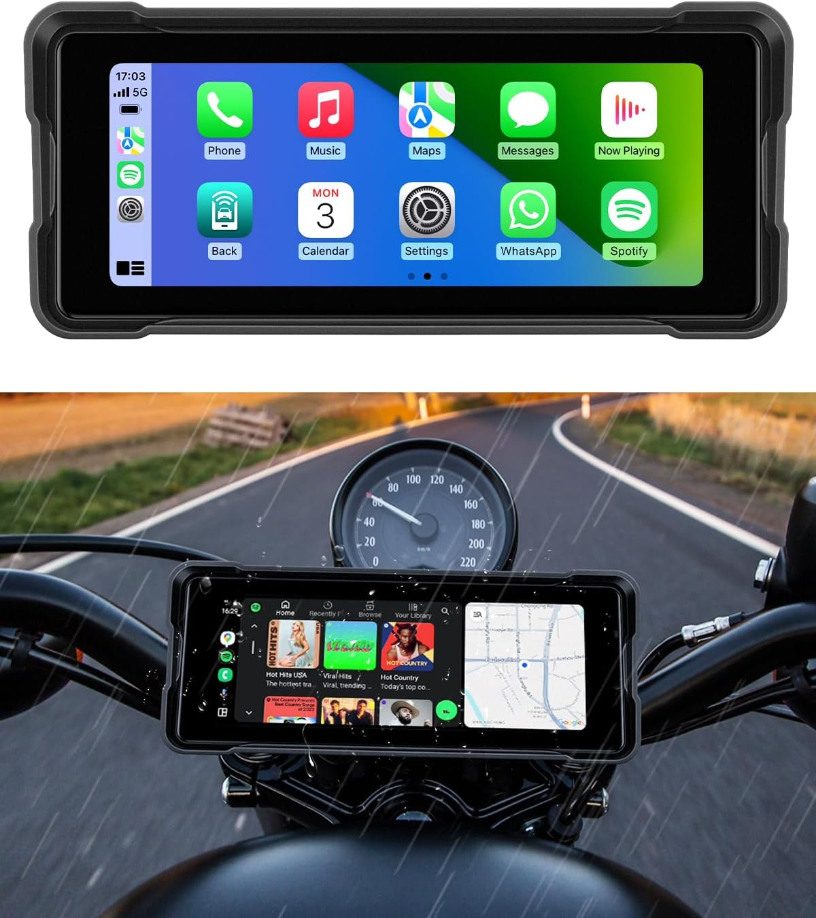

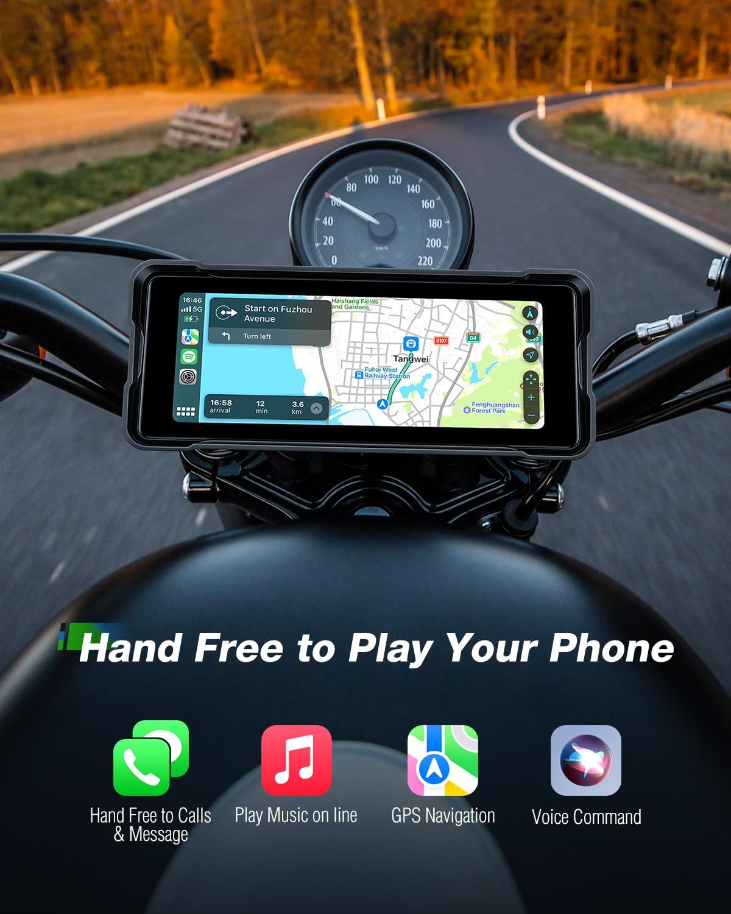

6.86'' IPS Touchscreen 2CH 1080P Motorcycle Carplay DVR with TPMS, Wireless Carplay & Android Auto, IP8 Full Body Waterproof Wireless CarPlay & Android Auto: Seamlessly sync your smartphone for navigation, music, and calls directly on the 6.86-inch responsive touchscreen. IP8 Waterproof & Weatherproof Design: Engineered to withstand heavy rain and dust; the high-brightness IPS screen ensures clear visibility in any outdoor condition.
Plan | CPU | Allwinner Dual Recording V553/Dashcam Single Screen Mirroring F133 | |||
system | System Platform | Linux4.9 | | | |
Video/Photography | Video recording mode | 1560x1080/30FPS | |||
Video resolution | Dual 1080P/30fps | ||||
Photo resolution | 1560X1080 | ||||
Video Format | Video Format | TS | |||
Image Format | JPG | ||||
Camera | Photosensitive chip | GC2083 with Waterproof | |||
Lenses | 1G+3P+1IR (lens+infrared filter), aperture F=2.0 | ||||
Viewing Angle | D:140° | ||||
H:140° | |||||
V:60 | |||||
Lens rotation angle | fixed | ||||
Number of cameras | 2个 | ||||
Display | Size: 5 inches | 5-inch full film anti fingerprint and water repellent coating | |||
Resolution | 1560 *720P | ||||
type | 5 inch IPS | ||||
TP Touch | 2.5D Lens: Supports/Waterproof/Gloves for Touch | ||||
Memory | CPU running memory (internal/external) | 1G DDR3 | |||
ROM | 128MB | ||||
Support external storage (TF card) | 64-128GB (card speed C10 and above) | ||||
microphone | microphone | Optional | |||
speaker | trumpet | Optional | |||
Product appearance | interface | TYPE-C/TF card slot | |||
button | not have | ||||
principal line | 3-line integrated main line | ||||
power supply | Built-in super capacitor | 2.5F/5.5V | |||
Maximum power consumption | 1.2A(5V） | ||||
Power supply and charging equipment | Voltage reducing line 5V/2.5A | ||||
High and low temperature | Operating temperature | -10℃--+65℃ | |||
Storage temperature | -20℃--+70℃ | ||||
USB Port | Support functions (USB, PC camera) | not have | |||
Function | Main features | Loop recording | |||
Support ACC parking monitoring and time-lapse recording | |||||
Support 3D noise reduction and image enhancement | |||||

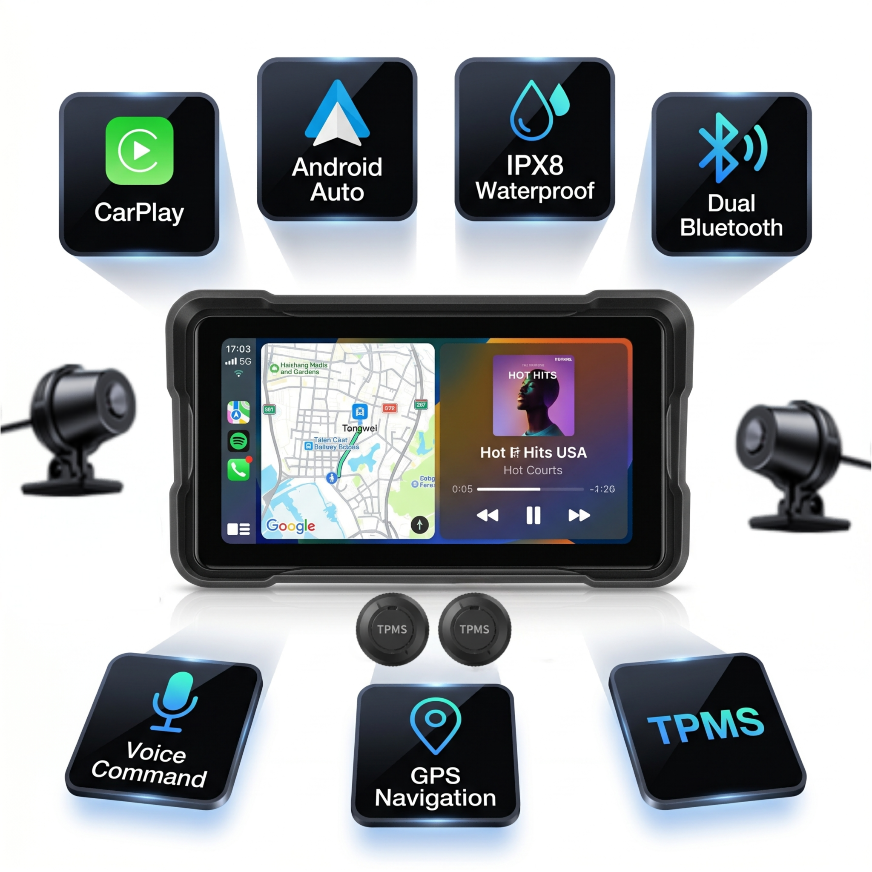

Tire pressure transmitter front/rear wheels (optional) | |||||

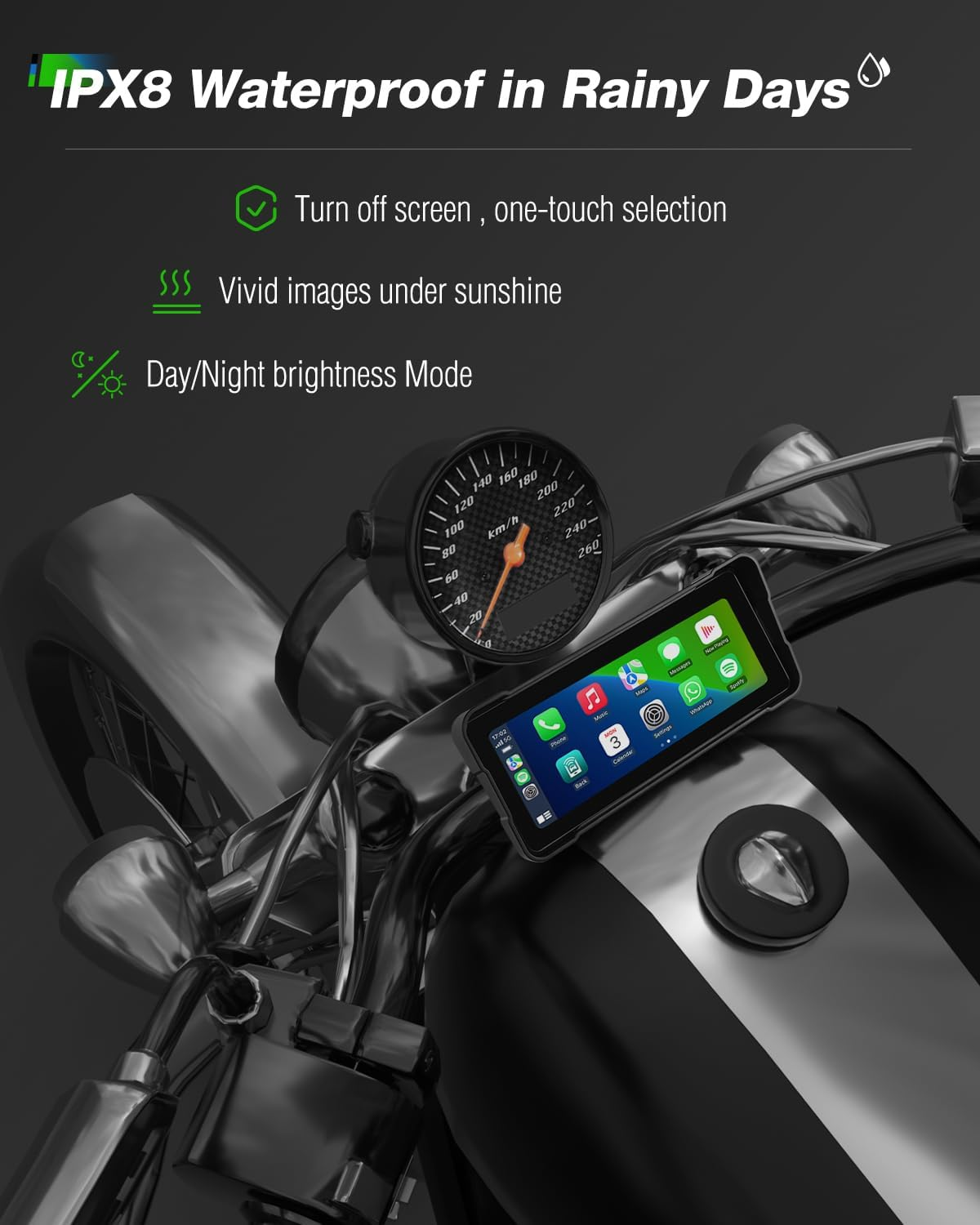

Whole machine anti splash: IP67 | |||||

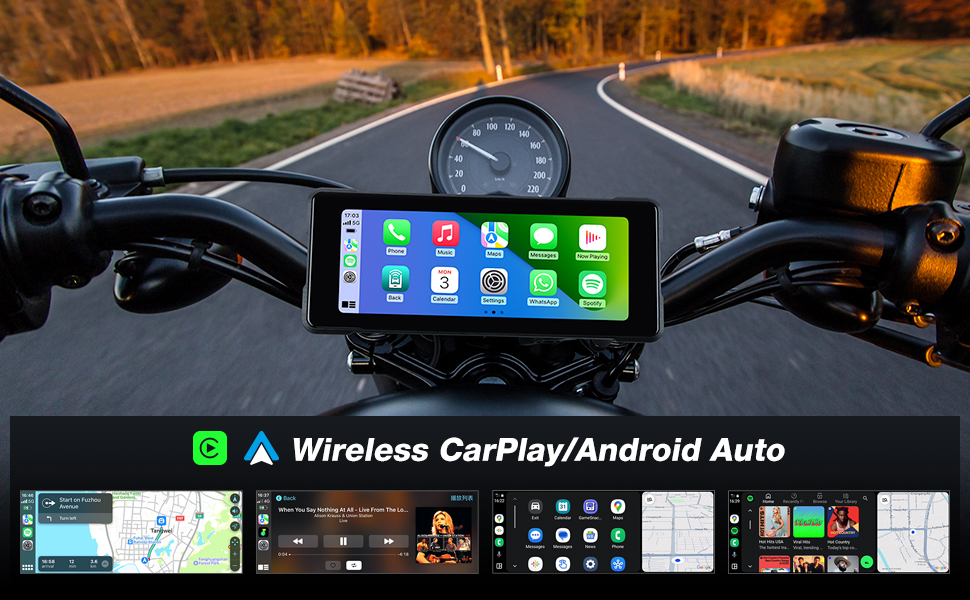

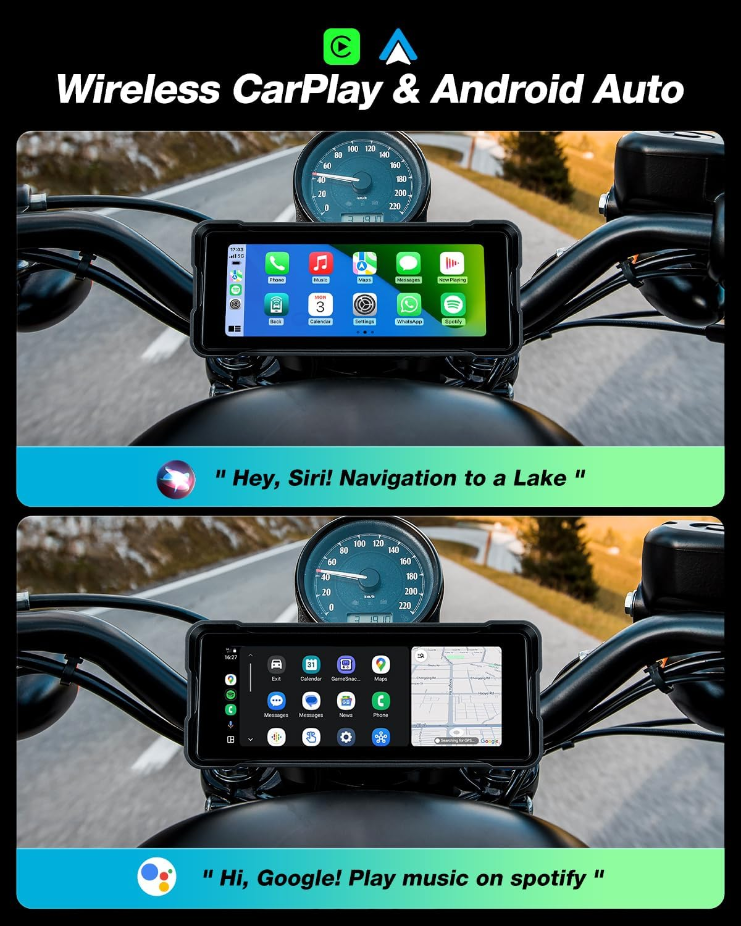

Overseas screen casting: Carplay+Android auto | |||||

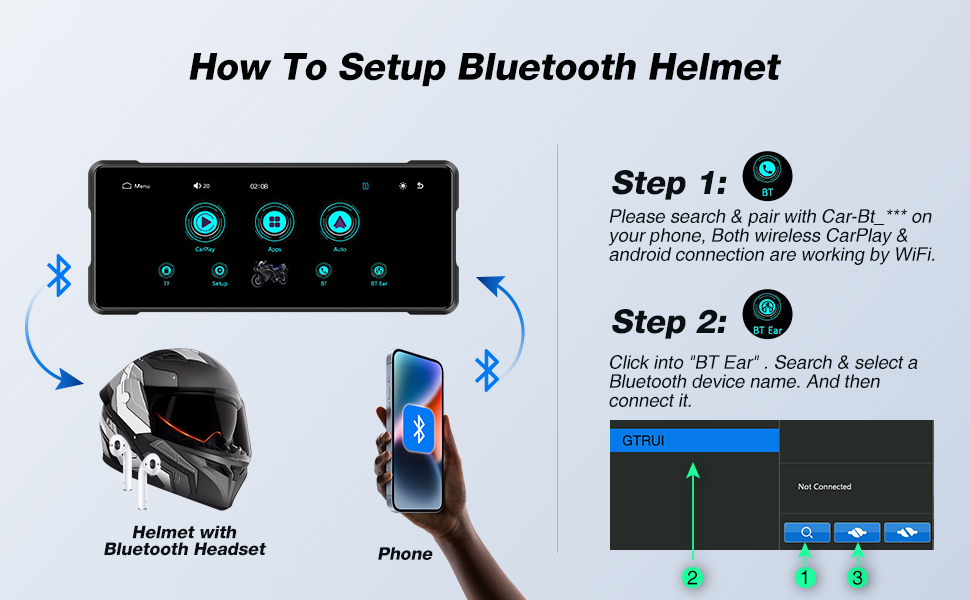

Supports Bluetooth, supports separate Bluetooth connection to mobile phone | |||||
Full screen touch | |||||
language | Existing languages | Support global languages such as Chinese, English, Russian, and Japanese | |||
