Name: OEM Project Fixed Ruler Line Backup Camera for Peugeot 301 Manufacturers Suppliers Factory - Made in China - Vehicle Tech Electronics
Brand: Oranic
SKU: 261183958

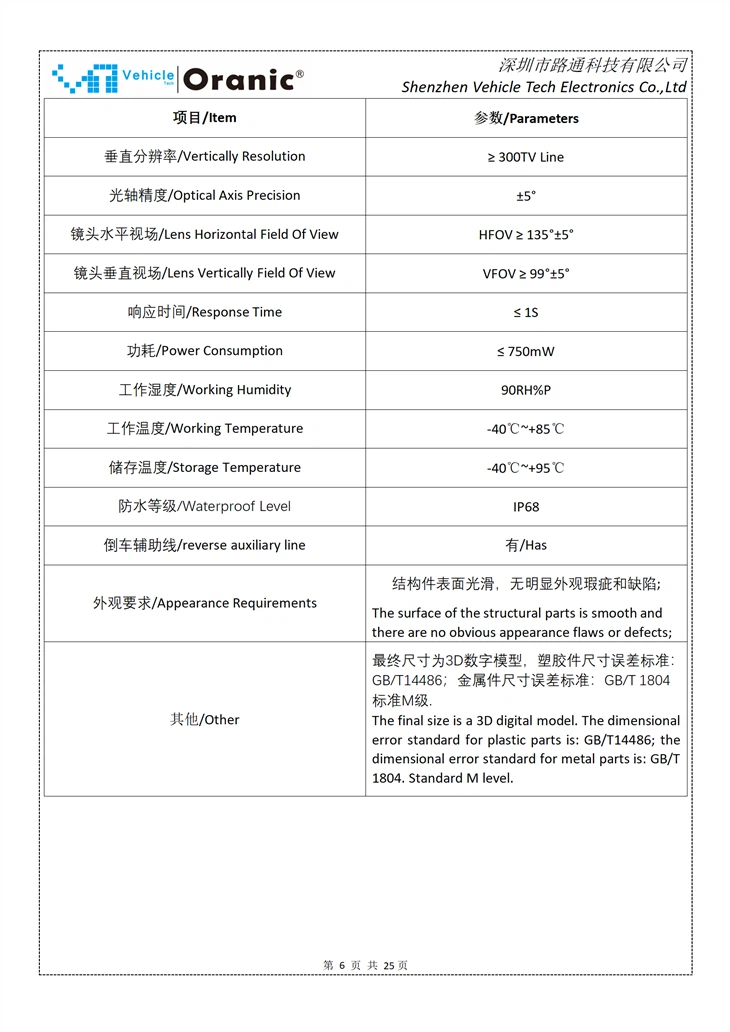

产品技术参数/Product Technical Parameters
Item	Parameters
Working Voltage Range	DC9V-16V
Rated Voltage	DC12V
Rated Current	≤ 100mA@DC12V
Image Sensor	1/4 CMOS
Valid Pixels	688(H)* 528(V)
Video Standard	NTSC
Video Output Format	CVBS
Video Output Level	1.0±0.2Vpp @ 75Ω
Image Transmission Rate	30fps/s
Scanning Mode	Interlaced
pixel Region	3.58*2.96um
Signal To Noise Ratio	≥ 48dB
Dynamic Scope	≤ 65dB
Level Of Sensitivity	123.4K[e/lux*sec]
Dark Signal	126.7K[e*sec]
Exposure Pattern	Auto Exposure
Gain Control	Auto Gain Control
Color Control	Auto White Balance
Minimum Illuminance	≥ 30IRE@2Lux
Horizontal Resolution	≥ 330TV Line
Vertically Resolution	≥ 300TV Line
Optical Axis Precision	±5°
Lens Horizontal Field Of View	HFOV ≥ 135°±5°
Lens Vertically Field Of View	VFOV ≥ 99°±5°
Response Time	≤ 1S
Power Consumption	≤ 750mW
Working Humidity	90RH%P
Working Temperature	-40℃~+85℃
Storage Temperature	-40℃~+95℃
Waterproof Level	IP68
reverse auxiliary line	Has
Appearance Requirements	The surface of the structural parts is smooth and there are no obvious appearance flaws or defects;
Other	The final size is a 3D digital model. The dimensional error standard for plastic parts is: GB/T14486; the dimensional error standard for metal parts is: GB/T 1804. Standard M level.

Ultra-Wide 150° Viewing Angle

Features an exceptionally wide horizontal field of view (HFOV ≥ 150°±3°), drastically minimizing blind spots and providing unparalleled coverage for safer reversing and maneuvering in tight spaces.

Superior Low-Light Performance with High-Grade Lens

Equipped with a premium 1G4P+IR lens (TL2913B1) and 650nm filter, delivering high clarity and reliable performance even in challenging lighting conditions (Min. Illuminance ≥30IRE@2Lux).

Rugged Alloy Construction & IP68 Protection

Built with a durable alloy rear case and robust materials, offering superior impact resistance and complete protection against dust and water with an IP68 rating, ensuring longevity in harsh environments (-40°C to +85°C).

Stable & Reliable Video Output

Delivers a stable, high-quality CVBS NTSC signal (30fps) with excellent signal integrity (≥48dB SNR), ensuring a clear and real-time feed to the monitor without lag or interference.

Professional Connector & Secure Connection

Utilizes a professional DJ7027A-1.5 black connector for a secure, vibration-resistant electrical connection, enhancing reliability and ease of installation for OEM applications.

Oranic®: Your Trusted OEM Partner for Advanced Automotive Vision Solutions

At Oranic Tech, we specialize in crafting high-quality, reliable rearview cameras and automotive vision systems tailored precisely to our clients' requirements. We understand that your brand deserves products that reflect its standards for safety, quality, and performance.

If you are looking for a reliable, experienced, and technically proficient partner for custom automotive camera solutions, Oranic Tech is your ideal choice.

Other Specifications Pictures

product-932-469

product-214-240

product-1587-2245

Factory Showcase

product-583-2436
