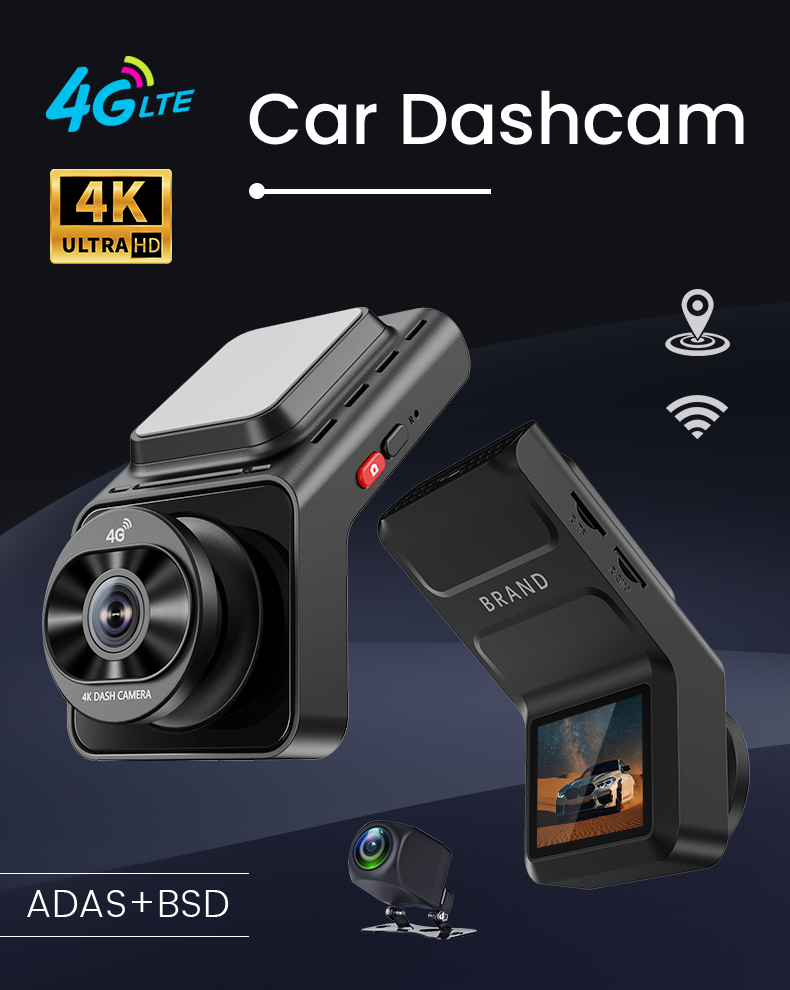

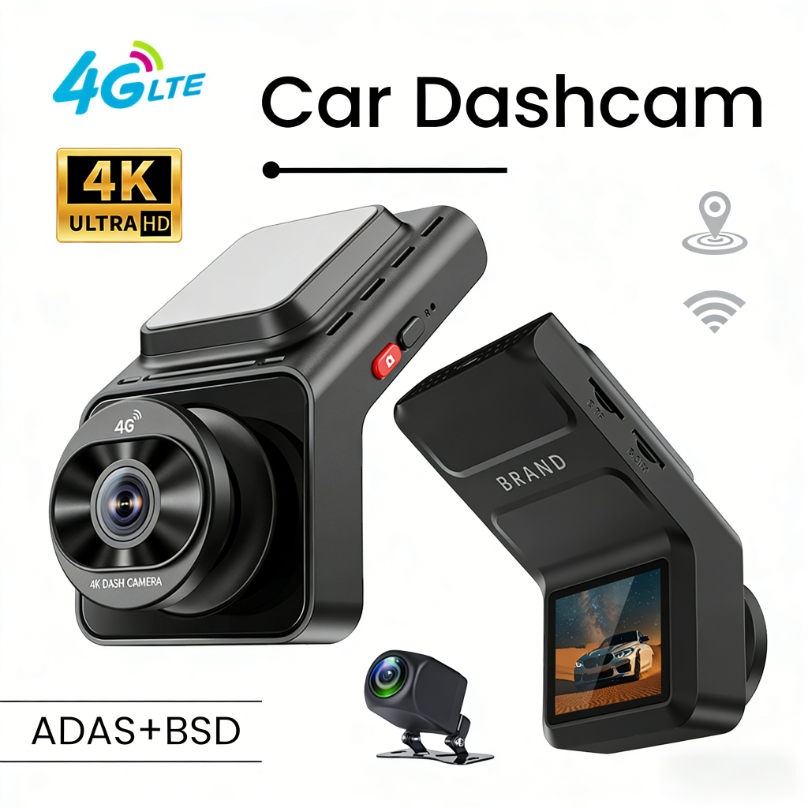

4G Dashcam
K26

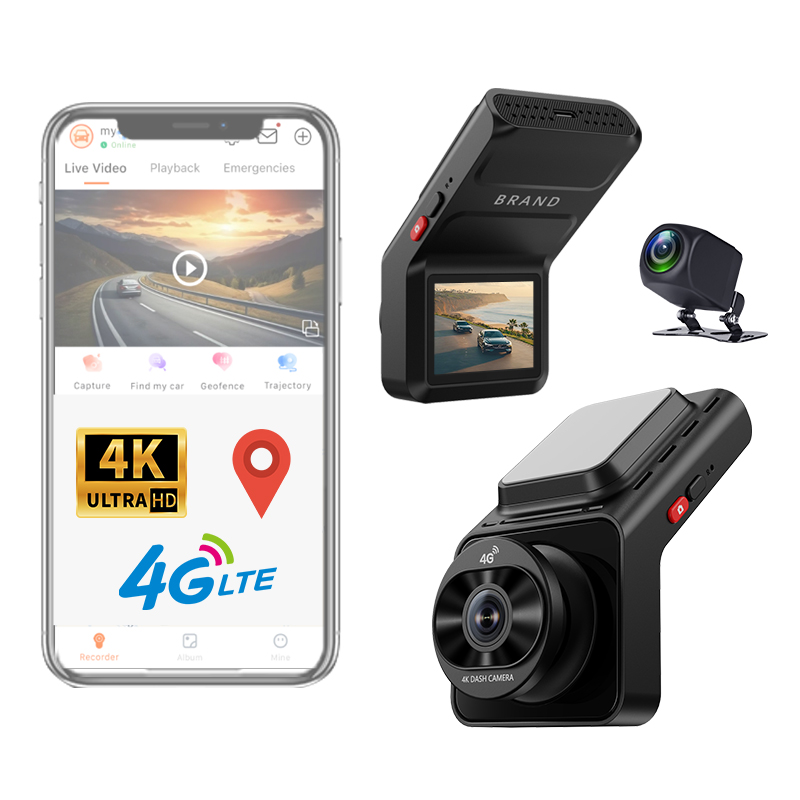

4K Ultra HD Resolution: Captures crystal-clear footage for superior detail. Dual Lens Design: Front and rear cameras provide comprehensive coverage. Wi-Fi and GPS Integration: Remote access and location tracking via mobile app. Certified, Fast & Customizable: CE certified with fast production, plus free custom boot logo support.
Product Parameter | ||
Model number | K26 | |
Screen | 2.0inch IPS screen , 320x240P MIPI interface | |
CPU | SA230D Arm Cortex-A7 CPU+RISC-V CPU | |
DDR | 1GB DDR3L | |
4G Module | Quectel EC800K | |
Storage | RAM | 128MB |
ROM | 128MB | |
GPS | Built in GPS+Beidou dual module GPS antenna | |
OS | Linux | |
Network Band | 4G FDD-LTE: B1/B3/B5/B8, TDD-LTE: B38/B39/B40/B41 , Cat1 3G WCDMA: B1/B5/B8 | |

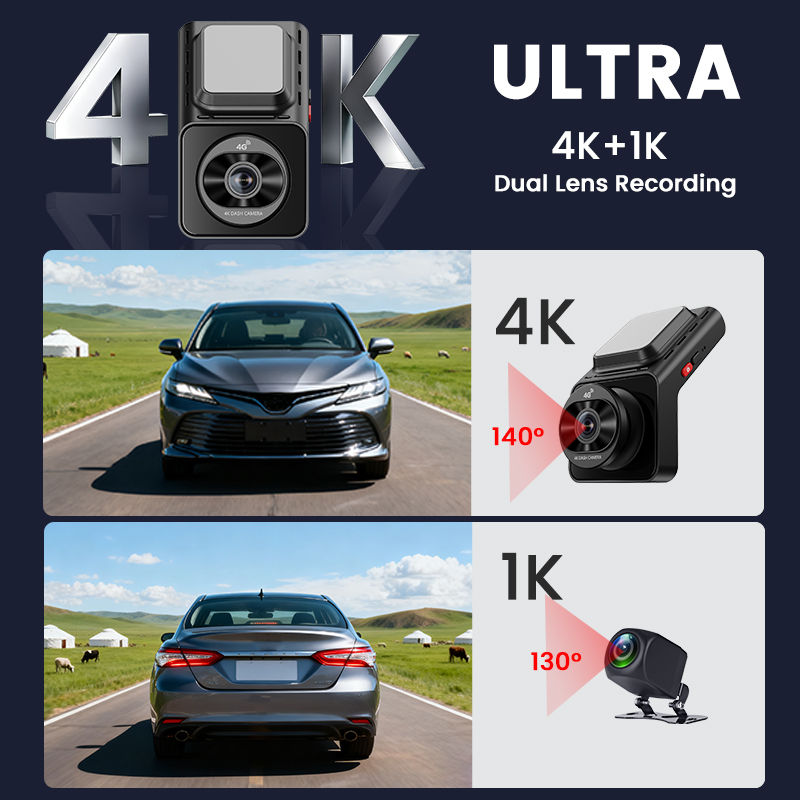

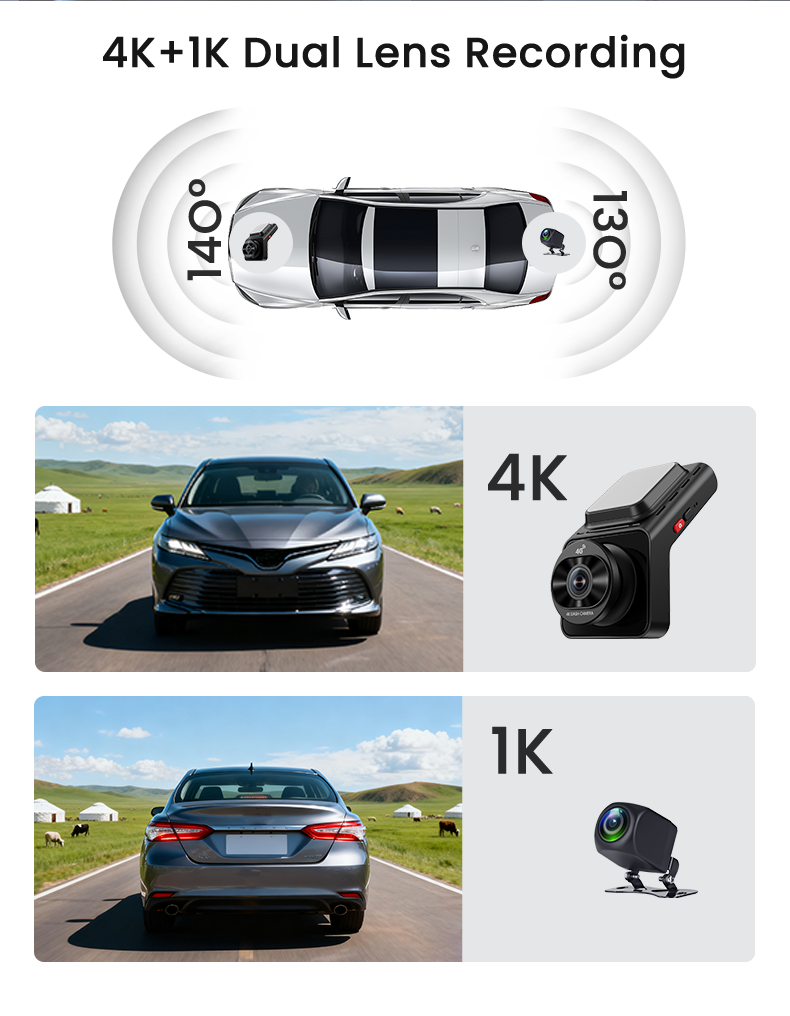

Dual camera resolution | Front camera is 4K/3840*2160@25fps ,wide angle 140 °; Back camera is 1K/1920x1080@25fps , wide angle view is 130° | |
Remote monitor | Support mobile APP remote live-view and monitor, remote playback/capture image, remote TF card formatting, remote restart, remote download video files from sd card. | |

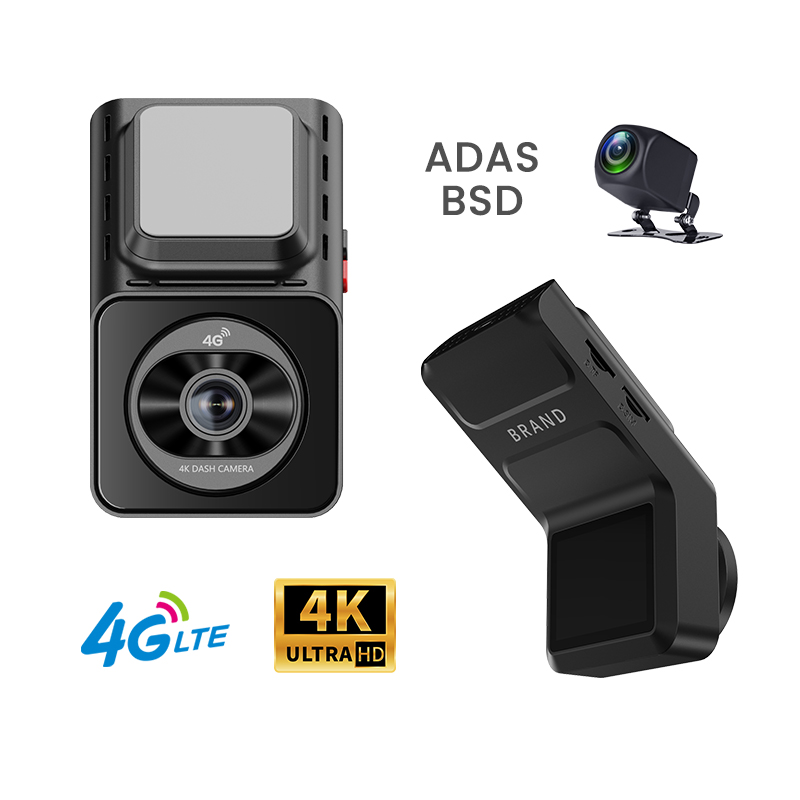

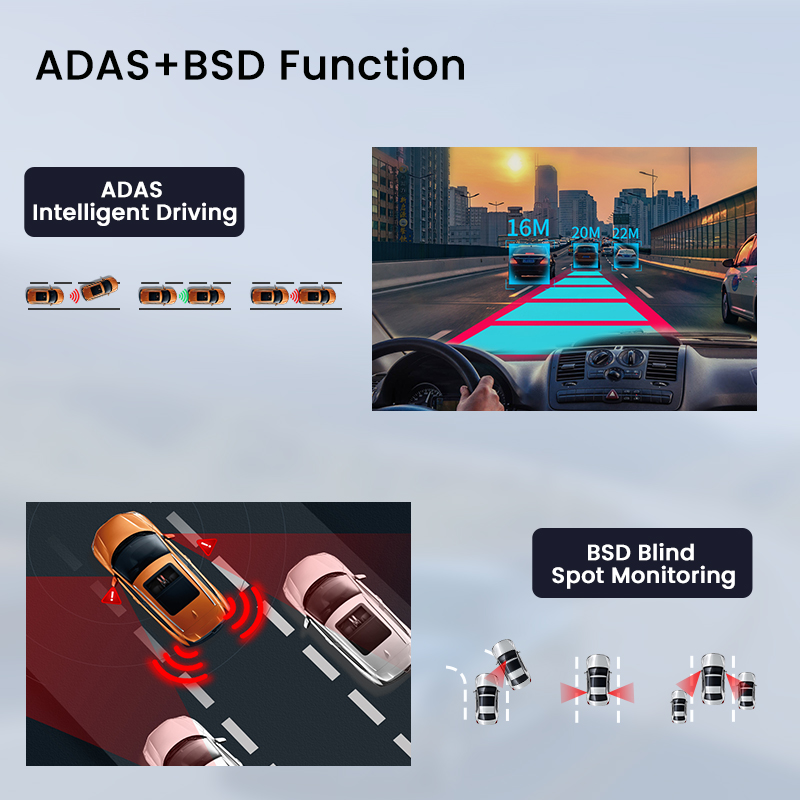

BSD | Support | |
ADAS | Support | |
GPS track history playback | Support | |
Video file playback and download | | Support check video file by SD card or download the video file into mobile phone to playback |
G-Sensor | 3-axis G-Sensor, support Loop Recording | |
Parking Monitor | 3-axis G-Sensor, support Parking Monitor | |
Time lapse | Support 12Hrs or 24Hrs time lapse recording | |
Video compression format | H.264 | |
Video format | TS | |
Software upgrade | Upgrade by TF card, OTA online upgrade. | |
WiFi | 802.11 b/g/n 2.4Ghz; support wifi hotspot | |
External memory card | Support micro sd card, maximum 512GB(not included) | |
MIC | Build in MIC-Phone Noise Reduction | |
Speaker | Build in speaker ( 1.5W/8R speaker) | |
Key button | 2 buttons | |
RESET | Support | |
Powered by | External power | DC12V, Type-C plug-in Input 12V, support 12~24V |
ACC | Support ACC checking | |
Temperature and humidity range | Temperature | Usage: -20~+70°C |
Storage: -30~+80°C | ||
Mobile APP name is "CloudSpirit" for Android/ iOS | ||
Real-time preview | Yes | |
Remote capture image | Yes | |
Remote capture video | Yes | |
Monitor and Alarm | Yes, Support Message / photo alarm if collision happened when car parking | |
GPS logger track history playback | Yes, could support 6 months GPS history search and playback | |
Two way voice talk | Yes, just need press the app microphone button one time, and then could talk to the driver | |
Live-view image Zoom in & Zoom out | Yes, support live-view window image zoom in & zoom out | |
Video download | Yes, support remotely download video files from sd card | |
Administrator | The first user who bind the dashcam , will become the administrator, the admin account could share the QR code to other user to monitor this dashcam, also could delete the user account as need. | |
