4G Dashcam
Q10
Night Vision: Equipped with night vision technology for clear visibility in low-light conditions. GPS Tracking: Integrates GPS for precise location tracking and route guidance. Dual Lens Design: Provides comprehensive front and rear views for enhanced security. Certified, Fast & Customizable: CE certified with fast production, plus free custom boot logo support.
Product Parameter | |||
Model number | Q10 | ||
Systems | Chipset | | ingenic T32ZN |
| OS | | Linux/RTOS |
Video | Image sensor | | 2MP 1080P CMOS sensor 1/2.9-inch |
TF card recording | PC playback | Front camera: 1920*1080/30fps; resolution supports interpolation up to 3MP | |
Rear camera: 1920*1080/15fps | |||
App playback | Front and rear dual cameras: 1920*1080/15fps | ||
Video compression coding standards | H.264/H.265 | ||

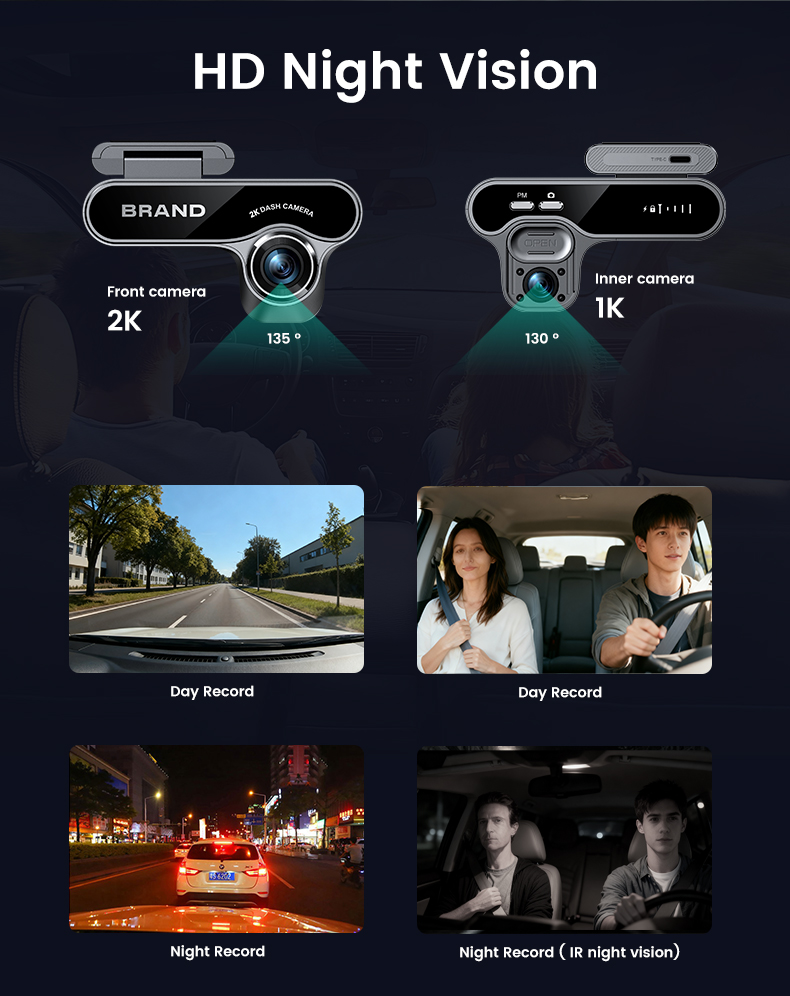

Night Vision Mode | 940nm IR night vision for interior camera and full-color night vision for front camera | ||
Audio | Audio coding standards | AAC and G.726 | |
Audio Input | High sensitivity -38dB | ||
Audio Output | External 8Ω/MAX 1.5W speaker | ||
Voice intercom | Support simplex/full-duplex voice talkie function | ||
Network | Network Module | UBIA customized low-power LTE module with GPS function | |
Network Protocol | TCP/IP,HTTP,TCP,UDP,DHCP,DNS,P2P ect | ||
Applicable areas | Supports Chinese, American, European, Australian, Japanese, and Global versions with different quotation | ||
SIM | Nano SIM | ||
Record | Video storage | TF card, cloud storage (if use the cloud storage will have extra Subscription Fees) | |
Arming alarm | Support custom arming time | ||
Intelligent detection | Support motion detection and human detection | ||
Network distribution method | | Support Bluetooth adding, QR code scanning adding, and sound wave network configuration | |
Working Mode | Parking Mode | Enable way | After the vehicle is turned off, it automatically enters parking monitoring mode |
| Function | Continuous monitoring in low-power state, quick start and recording after sensing detection (less than 0.3 seconds) | |
| Detection way | Front and rear dual radar detection, G-Sensor gravity sensing | |
Driving Mode | Enable way | After the vehicle is started, it automatically enters driving mode | |
Function | TF card continuously records video and dynamic tracks while driving | ||
Detection way | G-Sensor gravity sensor | ||
Functions | Emergency recording button | Can be manually triggered in driving mode to record a locked video (not overwritten) | |
Privacy Mode Key | When turned on, the real-time streaming and recording of the in-car camera are turned off, and the audio is turned off. | ||
GPS positioning function | OSD displays GPS coordinates and speed, APP displays map positioning | ||
LBS base station positioning | Support | ||
Other | Power supply | OBD interface/ACC hardwire kits power supply, automatic power-off protection when battery voltage <11.8V | |
External storage | Support microSD card 4GB~128GB card (not included) | ||
Radar specifications | One transmitter, multiple receivers, 24G millimeter wave | ||
Radar detection range | Front radar detection distance 3 Meters; rear radar detection distance 5 Meters | ||
Waterproof grade | IP65 | ||
Indicator light | Device working status, recording status, privacy status, and 4G signal indicator | ||
Work Environment | Operating temperature | -30°C~+60°C | |
Operating humidity | ≤80%RH | ||
App | APP name: UboxPro | ||
