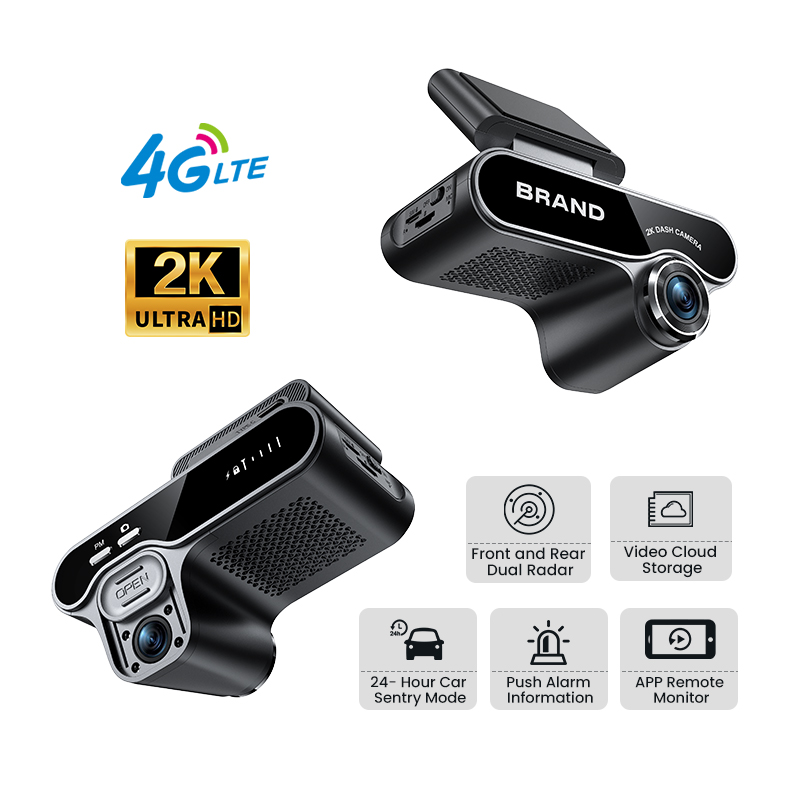

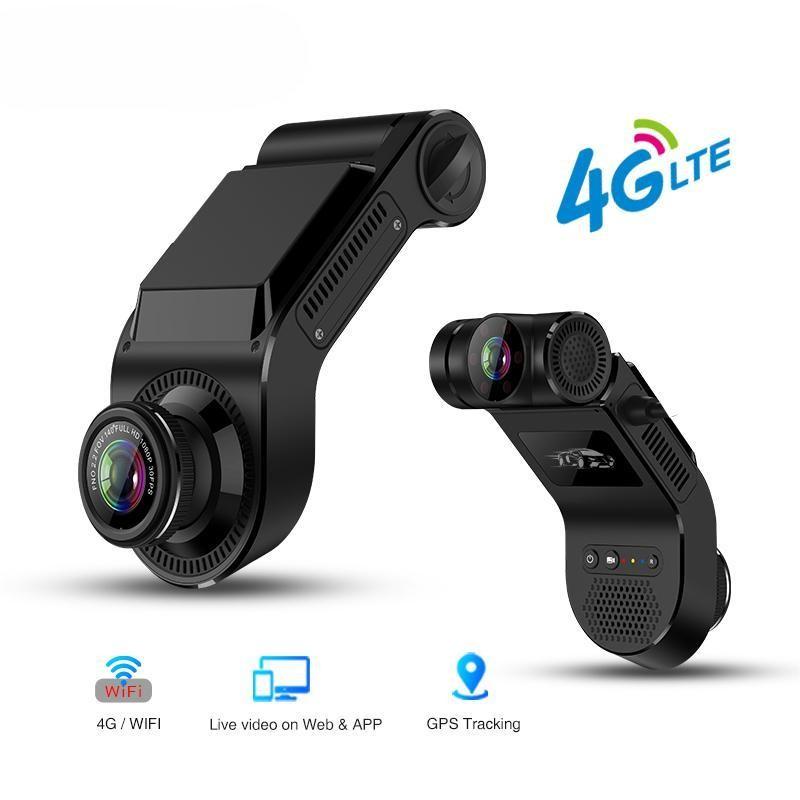

4G Dashcam
T5
4G LTE Connectivity: Real-time streaming via mobile network. Night Vision: Captures clear footage in low-light environments. GPS Tracking: Ensures precise location data for enhanced security. Certified, Fast & Customizable: CE certified with fast production, plus free custom boot logo support.
Product Parameter | ||
Model number | T5 | |
Screen | NONE | |
CPU | SL8521E, Cortex-A53, Dual Core, 1.3Ghz | |
Storage | RAM | 512MB |
ROM | 256MB | |
External storage | TF card | Maximum 512GB micro sd card (not included) |
GPS | GPS+Beidou, built in GPS antenna | |
OS | Linux | |
Software upgrade | Upgrade by TF card, OTA online upgrade. | |
WiFi | 802.11 b/g/n 2.4Ghz; support wifi hotspot | |
Remote monitor | Support Mobile APP and PC remote monitor, and vehicle fleet management | |
GPS track history playback | Support | |
Remote video liveview | | Support remote liveview , voice talk |
Video file playback and download | | Support check video file by SD card or download the video file into mobile phone to playback. |
Network Band | 3G WCDMA:2100(B1); 4G FDD-LTE: B1/B3 | |
G-Sensor | 3-axis G-Sensor | |
Loop Recording | Support | |
Parking Monitor | Support | |

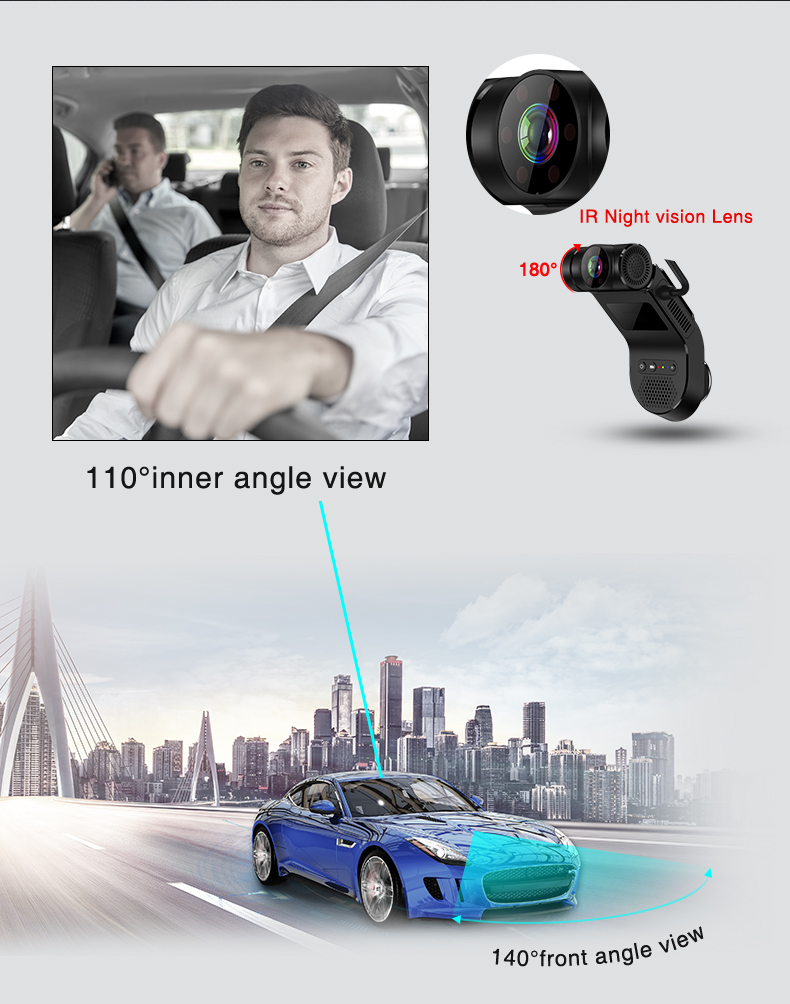

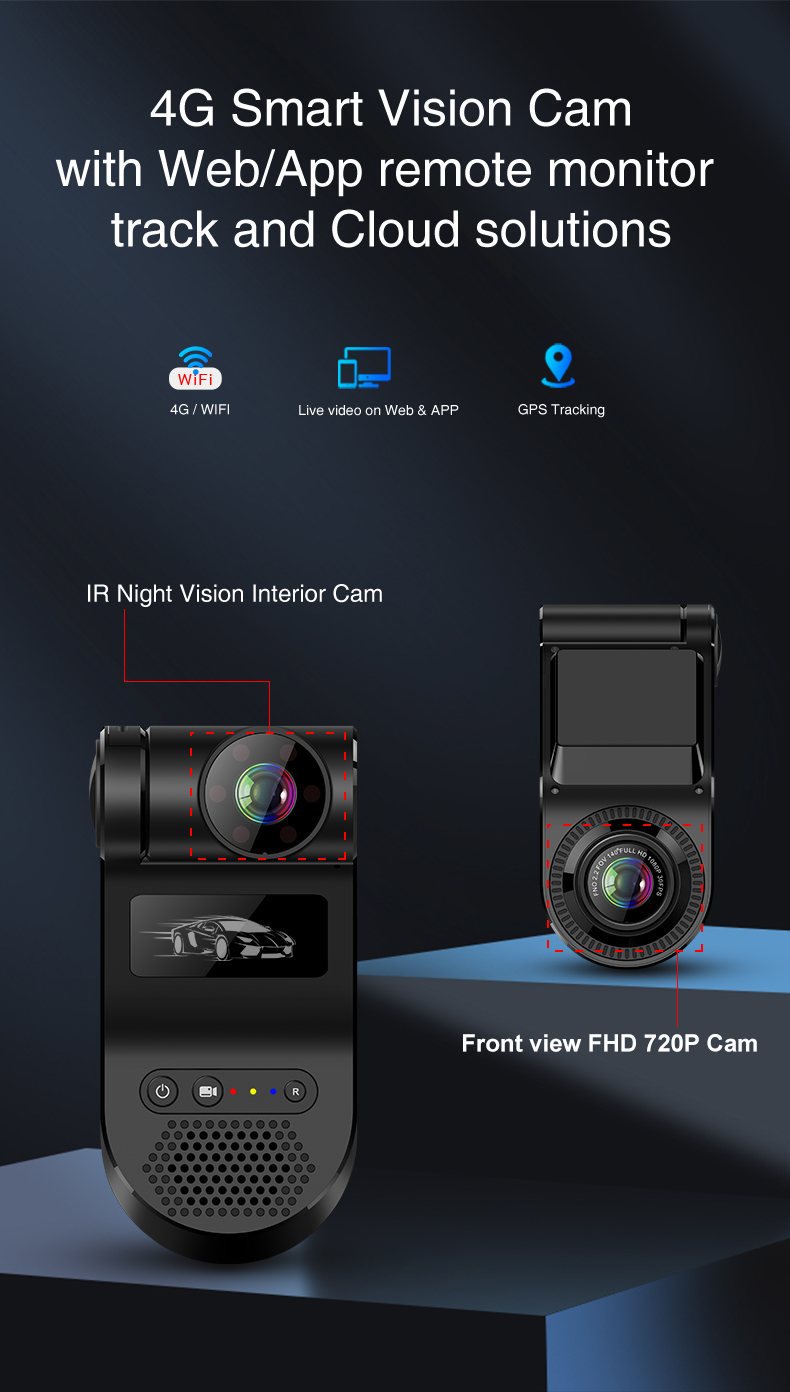

Front Camera | C2395 , 4glass camera lens , 140 degree wide view | |
In-car camera | 720P | |
Video resolution | Front cam :720P @25fps; inside cam: 720p @ 15fps | |
Video compression format | H.264 | |
Video format | TS | |
Standby power consumption | 4MAH | |
Hotspot | Support WIFI hotspot | |
Input/Output | Speaker | Build in speaker ( 1.5W/8R speaker) |
MIC | Build in MIC-Phone Noise Reduction | |
TF card | Support TF card, maximum 512GB(not included) | |
USB | Mini USB 2.0 | |
Key button | Power button/Photo button/ Reset key | |
RESET | Support | |
powered by | External power | BMW line power supply 12V; power supply voltage 9V-16V |
Temperature and humidity range | Temperature | Usage: -20~+70°C |
Storage: -30~+85°C | ||
humidity | Usage: 4%~90%RH | |
Storage: 40%RH | ||
Product Size | 87mm x 71mm x 33mm | |
Package | 1x dash camera; 1x power cable; 1x3M holder, 1x user manual | |
Version1: Mobile APP "CloudDVR" for Android/ iOS | ||
Parking Monitor | Support capture front and rear camera video and image | |
Real-time preview | Support video live preview | |
Two way voice talk | Suppore press and two way voice talking | |
GPS track history | Support GPS logger path and video synchronous playback | |
Monitor and Alarm | Support Message / photo alarm if collision happened when car parking | |
Video download | Support Point-to-point video download to the phone, don't consume internet data | |
Share video to alburm | Support car life | |

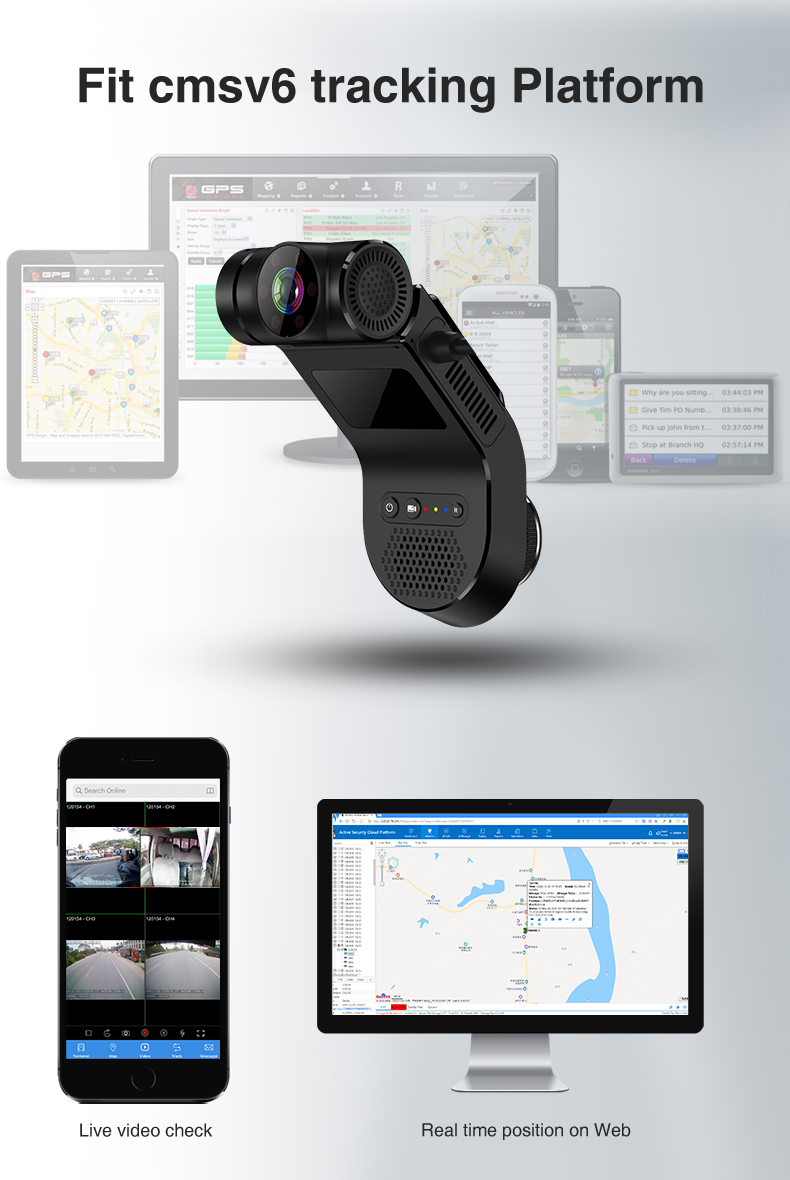

Version2: Active Security Cloud Platform "CMSV6" for Android/ iOS/ Windows | ||
CMSV6 license | If need work on CMSV6 platform, need buy the CMSV6 license | |
Cloud Server | Support to connect with your cloud server | |
Vehicle Fleet Management | Yes, support Multiple vehicle video monitor and management | |
Wisdom Board | Manage the vehicle status | |

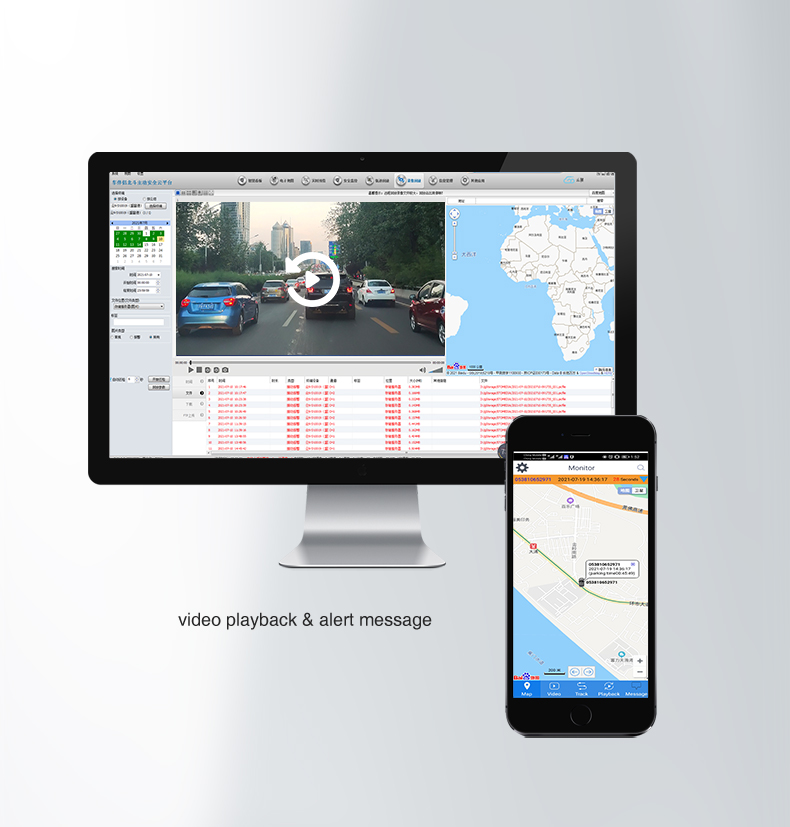

Real-time preview & playback | Support multiple device video preview and playback , download | |
GPS log playback | Support Map mode playback | |
